01
Historical Mold Example
Door Handle
Historical tool cost$1,700
- Cavities
- 2
- Mold structure
- Conventional injection mold
Historical Cost Evidence
Real Injection Mold Cost Examples
See what five completed tools cost and which mold structures drove the investment. Download the product and mold STEP files to inspect the geometry behind each example.
Historical reference, not a fixed offer.
Current prices depend on part geometry, mold steel, cavity count, surface requirements, tool-life target, hot-runner system and production volume.
Compare the Tooling Investment
The original records document price, cavity count, structure and CAD. Fields that were not captured in the historical record are marked clearly rather than estimated.
| Part | Tool Cost | Cavities | Structure | Steel | Tool Life | T1 Lead Time | Annual Volume |
|---|---|---|---|---|---|---|---|
| Door Handle | $1,700 | 2 | Conventional injection mold | Not recorded | Not recorded | Not recorded | Not recorded |
| Electric Appliance Support | $3,600 | 1 | Conventional injection mold | Not recorded | Not recorded | Not recorded | Not recorded |
| Seasoning Bottle | $4,600 | 2 | Oil-cylinder core pull and slider | Not recorded | Not recorded | Not recorded | Not recorded |
| Water Dispenser Housing | $29,000 | 2 | Hot runner, core pull, complex sliders and lifters | Not recorded | Not recorded | Not recorded | Not recorded |
| Vacuum Cleaner Housing | $33,000 | 1 | Hot runner, cavity-core lifter and three-sided slider | Not recorded | Not recorded | Not recorded | Not recorded |
02
Historical Mold Example

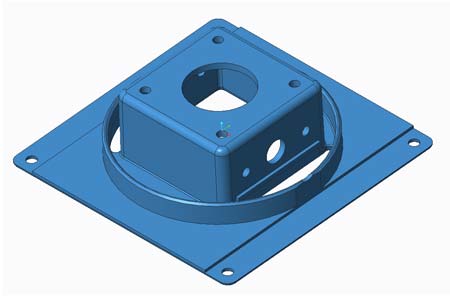

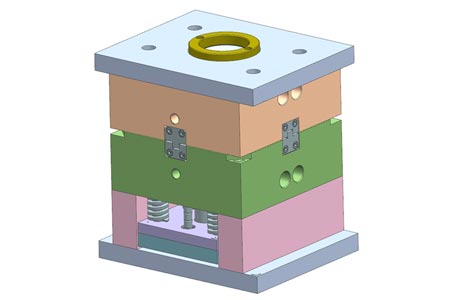

Electric Appliance Support
Historical tool cost$3,600
- Cavities
- 1
- Mold structure
- Conventional injection mold
03
Historical Mold Example

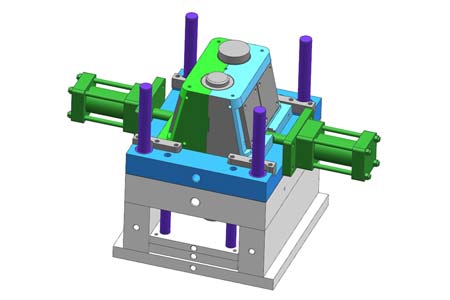

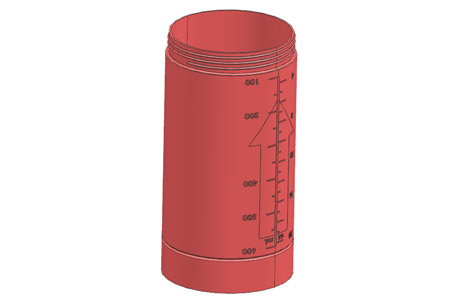

Seasoning Bottle
Historical tool cost$4,600
- Cavities
- 2
- Mold structure
- Oil-cylinder core pull and slider
04
Historical Mold Example

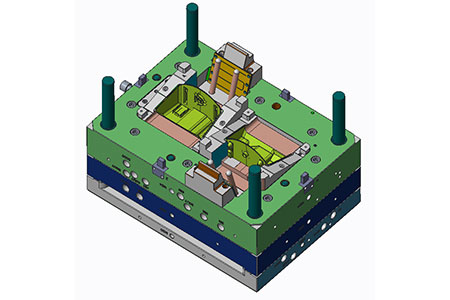

Water Dispenser Housing
Historical tool cost$29,000
- Cavities
- 2
- Mold structure
- Hot runner, core pull, complex sliders and lifters
Product STEP archive unavailable
Download Mold STEP ↓
05
Historical Mold Example

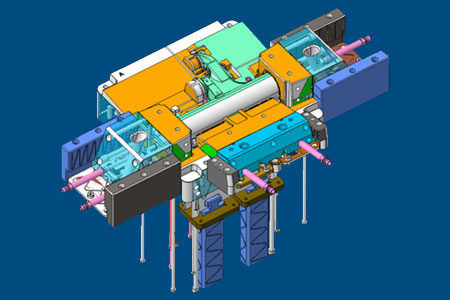

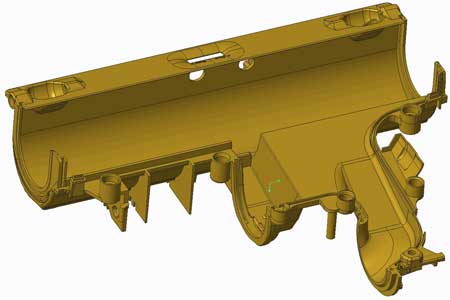

Vacuum Cleaner Housing
Historical tool cost$33,000
- Cavities
- 1
- Mold structure
- Hot runner, cavity-core lifter and three-sided slider
For a Current Purchasing Decision
A Current Quote Adds the Missing Commercial and Quality Data
For a new project, the quotation and order documents should define the tool steel, expected tool life, T1 timing, annual volume, payment milestones, included correction rounds, maintenance scope and transfer conditions.
Send the facts that control the price
- 3D CAD and critical 2D dimensions
- Material and cosmetic requirements
- Annual quantity and program life
- Mold export or production in China
- Target date and required quality documents
